Shipping Container Conversions 16ft High Cube Container Fitted with 21 Coat Rails
Pricing
Loxford School of Science & Technology, has quoted for a once-used high cube container - converted into a 16ft lined and insulated unit with coat-rail layout. We fitted S1 flat-panel doors, a lockbox and 21 oak-finish PerfectFit coat rails with Toughook XL hooks, then resprayed the exterior in RAL 5010 blue.
From a flat pack store to a 16ft lined container
The original enquiry was for a smaller insulated flat pack store. Following further discussion, requirement developed into a 16ft shipping container with a lined and insulated interior and a specific internal fit-out.

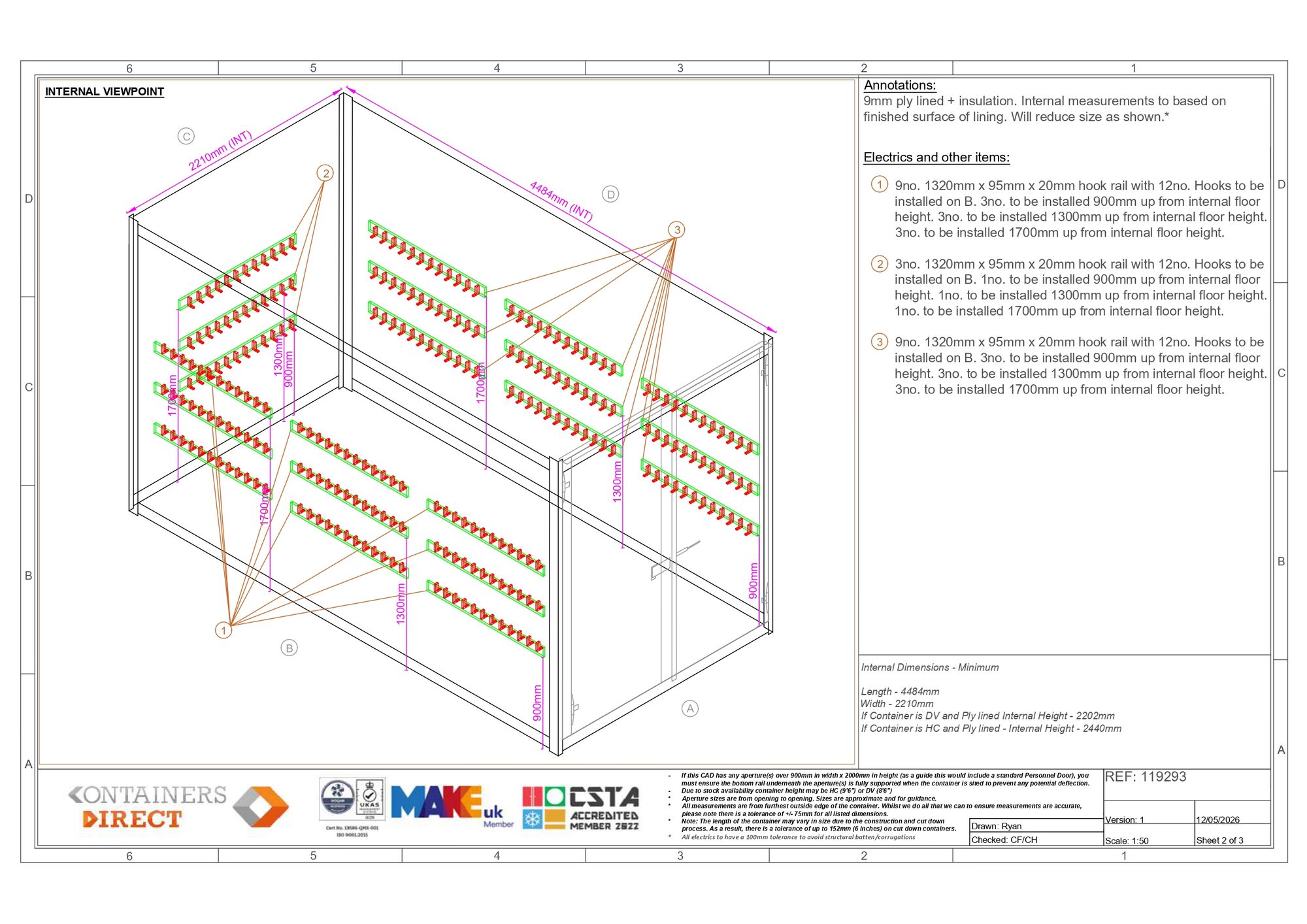

Agreed specification included S1 doors, a lockbox, 9mm plywood lining and 21 oak-finish PerfectFit coat rails. With all 21 rails needing to fit within the available wall space, Our CAD designer set out their positions on the technical drawing before installation.
Design and specification
- 16ft high cube container: We allocated a once-used high cube container and converted it to the required 16ft length. The finished unit measured 16ft long by 8ft wide, with an external height of 9ft 6in.
- Doors and security: We fitted S1 flat-panel doors for straightforward day-to-day access, together with a welded lockbox over the external locking point.
- Lining and insulation: We insulated the interior and finished it with 9mm plywood lining, giving the container a complete internal finish ready for the coat-rail installation.
- 21 coat rails: The oak-finish coat rails formed part of the fitted interior, so we included their positions in the CAD layout before installation. We then fitted all 21 rails with XL hooks.
- External finish: We resprayed the container and S1 doors in RAL 5010 blue for one consistent exterior finish.
Case Study Details
| Client | Loxford School of Science & Technology |
|---|---|
| CS Ref | 119293 |
| Project type | Lined and insulated container with specialist internal fit-out |
| Base unit | Once-used cut-down shipping container |
| Quantity | 1 container |
| Size | 16ft x 8ft, high cube with 9ft 6in external height |
| Doors and security | S1 flat-panel container doors with fitted lockbox |
| Internal finish | 9mm plywood lining and insulation |
| Specialist fit-out | 21 oak-finish PerfectFit coat rails with Toughook XL hooks |
| External finish | RAL 5010 blue |
| Planned delivery | Ilford area, shared-load 65ft articulated vehicle with HIAB offload |
The completed conversion
We cut the once-used high cube container down to 16ft, fitted the S1 doors and lockbox, then resprayed the exterior in RAL 5010 blue. Inside, we insulated the shell, fitted the 9mm plywood lining and installed the coat rails to the agreed CAD layout.
All 21 hooks were fitted before the unit left our depot, the quality inspection record was completed. Finished conversion matched the agreed specification and was prepared for planned shared-load HIAB delivery to the Ilford area.
