Shipping Container Conversions 16ft x 10ft packaged plant room
CS98937
Pricing
*Call For Delivery Costs
This bespoke new build unit was designed as a packaged plant room for Welburn Hall School in North Yorkshire, a county council maintained special school. The beautiful building that's now home to the school dates back to the 17th century and is set in 14 acres of landscaped gardens. As a Grade 11 listed building any alterations require consent to maintain the historical and architectural value. In this context the replacement to the building's existing systems to provide light, power, hot water and heating to the building is best served by an external, plant room in the school grounds.
We were contracted by Kimpton Ltd to construct a container suitable for Welburn's refurbishment. Kimpton design and install mechanical, electrical and plumbing solutions across many sectors. Other clients they have worked with include Co-op and M&S Bank Arena.
We were contracted by Kimpton Ltd to construct a container suitable for Welburn's refurbishment. Kimpton design and install mechanical, electrical and plumbing solutions across many sectors. Other clients they have worked with include Co-op and M&S Bank Arena.
CD Code CS98937
Looking for something similar? Call our sales team on 0800 061 2575

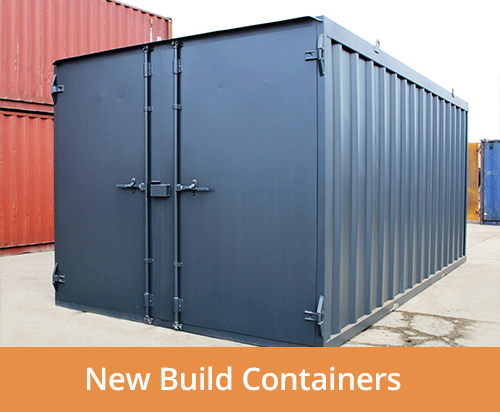

We construct new build units in our on-site workshops, usually 10ft wide (other widths available upon request) for applications that need extra width - these include plant rooms, offices, and container garages. Choose from our standard 10ft wide package build, or a bespoke build, as featured with this packaged plant room, where extra steel work, lining and a durable, non-slip floor was added.
Looking for something similar? Call our sales team on 0800 061 2575
Features
Design
Special features
- New Build container - 5000mm x 3200mm x 3200mm (approx 16ft 5in x 10ft 6in x 10ft 6in)
- 8ft wide louvered double doors to the side
- Lockbox + padlock
- 3 x box frame apertures to ceiling with steel plate insert for flue
- Painted in Moss Green
- Plastisol lining with 100mm mineral wool insulation
- Unistrut (surface mounted, affixed to stud work, 3 tiers across 3 walls)
- 18mm ply floor over steel bearers
- Steel durbar floor laid over ply
- 30mm hole drilled in floor
Specialist new build containers
Our client needed a unit with dimensions beyond those a standard shipping container offers. Therefore the unit was designed to be over 2ft taller and wider than a standard container, for ease of access and to accommodate the specific requirements of the plant room installations.We construct new build units in our on-site workshops, usually 10ft wide (other widths available upon request) for applications that need extra width - these include plant rooms, offices, and container garages. Choose from our standard 10ft wide package build, or a bespoke build, as featured with this packaged plant room, where extra steel work, lining and a durable, non-slip floor was added.
The design
Click to expand>>
Interested in similar conversions? See more plant rooms and extra-wide containers:
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
